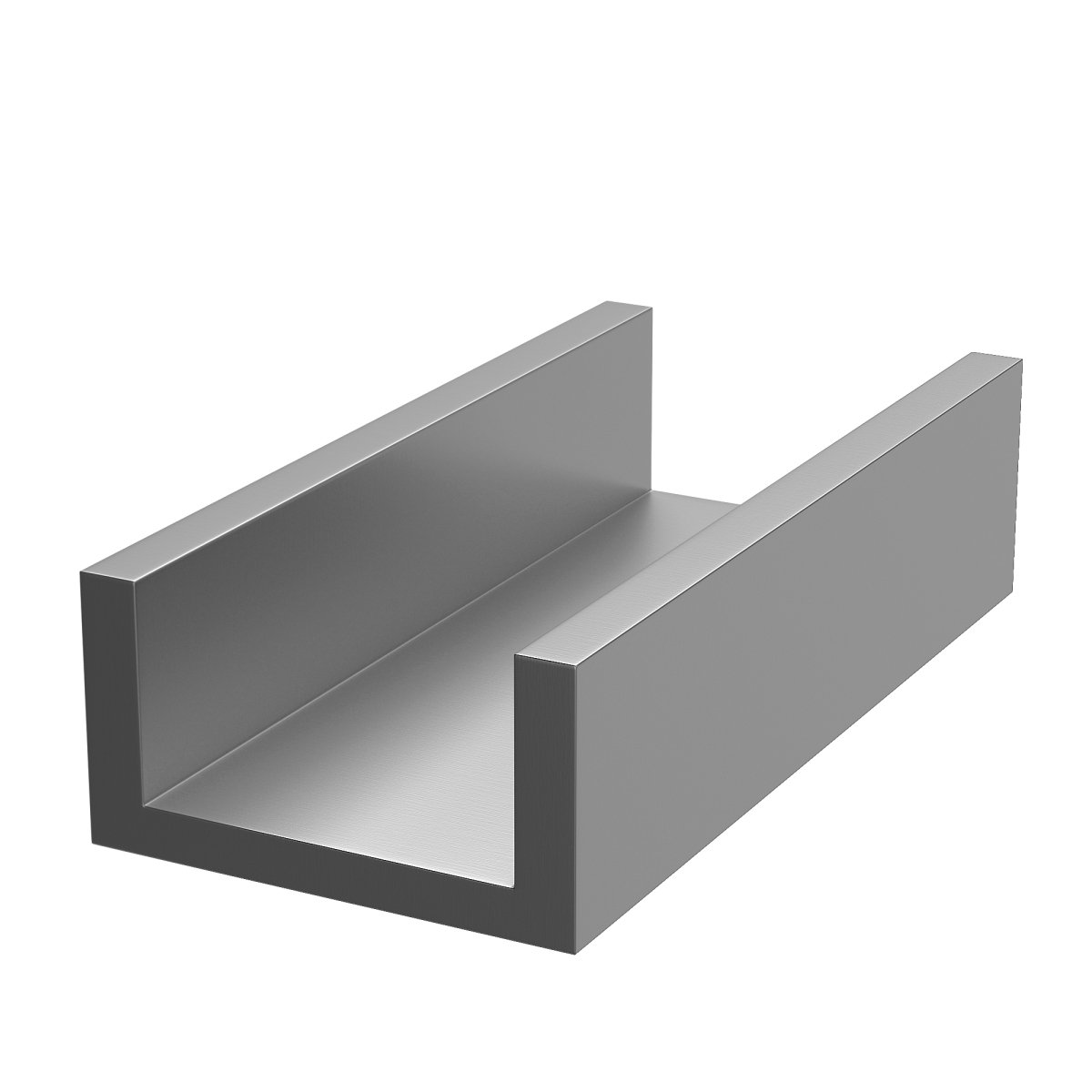

Aluminum Extruded Channel 6063 T52

This grade is commonly referred to as the architectural alloy, or 'square corner'. It was developed as an extrusion alloy with reasonable tensile strength, excellent finishing characteristics, and excellent corrosion resistance..

1/2 x 1/2 x .093 Architectural Aluminum Channel 6063 - T52 - Direct Aluminum

SPECIFICATIONS:

ASTM B221
AMS QQ A 200/9

APPLICATIONS:

6063 is found in various interior and exterior architectural applications such as window frames, doors, trim, construction products, lawn furniture and luggage racks. Best suited for anodizing applications.

HOW TO MEASURE:

A (Width) X B (Flange) X C (Web)

CHEMISTRY: LESS THAN 3/4" THICK

Chemistry: Less than 3/4" thick

Copper .10 max
Silicon .20/.60
Iron .35 max
Manganese .10 max
Magnesium .45/.90
Zinc .10 max
Chrome .10 max
Titanium .10 max

MECHANICAL PROPERTIES:

Tensile Strength = 27,000 PSI
Yield Strength = 21,000 PSI min
% Elongation = 12% min

SPECIFICATIONS:

ASTM B221
AMS QQ A 200/9

APPLICATIONS:

HOW TO MEASURE:

A (Width) X B (Flange) X C (Web)

https://cdn.shopify.com/s/files/1/0820/4291/3075/files/Screenshot_2023-08-29_234626.png?v=1693331259

CHEMISTRY: LESS THAN 3/4" THICK

Chemistry: Less than 3/4" thick

Copper .10 max
Silicon .20/.60
Iron .35 max
Manganese .10 max
Magnesium .45/.90
Zinc .10 max
Chrome .10 max
Titanium .10 max

MECHANICAL PROPERTIES:

Tensile Strength = 27,000 PSI
Yield Strength = 21,000 PSI min
% Elongation = 12% min

ITEM #

SIZE

WEIGHT

DIMENSIONS

QUANTITY

PRICE

13-63-200

1/2 x 1/2 x .093 Architectural Aluminum Channel 6063-T52

0.148

$1.48

13-63-205

1/2 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.263

$2.63

13-63-209

3/4 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.226

$2.26

13-63-211

3/4 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.3

$3.00

13-63-215

1 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.263

$2.63

13-63-220

1 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.431

$4.31

13-63-225

1-1/4 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.3

$3.00

13-63-226

1-1/4 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.376

$3.76

13-63-229

1-1/4 x 1-1/4 x .100 3-1/8” Architectural Aluminum Channel 6063-T52

0.425

$4.25

13-63-230

1-1/4 x 1-1/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.526

$5.26

13-63-235

1-1/2 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.337

$3.37

13-63-236

1-1/2 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.413

$4.13

13-63-255

1-1/2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.487

$4.87

13-63-256

1-1/2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.487

$4.87

13-63-237

1-1/2 x 1-1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.637

$6.37

13-63-250

1-3/4 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.45

$4.50

13-63-306

1-3/4 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.524

$5.24

13-63-307

1-3/4 x 1-3/4 x .093 Architectural Aluminum Channel 6063-T52

0.565

$5.65

30-63-135

1.796 x 1-1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.666

$6.66

13-63-261

2 x 7/16 x .093 Architectural Aluminum Channel 6063-T52

0.294

$2.94

13-63-260

2 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.413

$4.13

13-63-262

2 x 3/4 x .093 leg/.125 Architectural Aluminum Channel 6063-T52

0.44

$4.40

13-63-279

2 x 1 x .093 Architectural Aluminum Channel 6063-T52

0.426

$4.26

13-63-265

2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.563

$5.63

13-63-274

2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.563

$5.63

13-63-270

2-1/4 x 7/8 x 1/8 Architectural Aluminum Channel 6063-T52

0.563

$5.63

200-MF-103

2.325 x 2.38 x 0.125 Architectural Aluminum Channel 6063-T52

1.008

$10.08

52-61-3798

2-1/2 x 1-1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.787

$7.87

13-63-285

3 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.713

$7.13

13-63-273

4 x 1 x .105 leg/.080 web (w/radius) Architectural Aluminum Channel 6063-T52

0.613

$6.13

30-63-140

10 x 1-1/4 x .188 Architectural Aluminum Channel 6063-T52

2.726

$27.26

1/2 x 1/2 x .093 Architectural Aluminum Channel 6063-T52

0.148

Item:

13-63-200

$1.48

1/2 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.263

Item:

13-63-205

$2.63

3/4 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.226

Item:

13-63-209

$2.26

3/4 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.3

Item:

13-63-211

$3.00

1 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.263

Item:

13-63-215

$2.63

1 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.431

Item:

13-63-220

$4.31

1-1/4 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.3

Item:

13-63-225

$3.00

1-1/4 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.376

Item:

13-63-226

$3.76

1-1/4 x 1-1/4 x .100 3-1/8” Architectural Aluminum Channel 6063-T52

0.425

Item:

13-63-229

$4.25

1-1/4 x 1-1/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.526

Item:

13-63-230

$5.26

1-1/2 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.337

Item:

13-63-235

$3.37

1-1/2 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.413

Item:

13-63-236

$4.13

1-1/2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.487

Item:

13-63-255

$4.87

1-1/2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.487

Item:

13-63-256

$4.87

1-1/2 x 1-1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.637

Item:

13-63-237

$6.37

1-3/4 x 3/4 x 1/8 Architectural Aluminum Channel 6063-T52

0.45

Item:

13-63-250

$4.50

1-3/4 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.524

Item:

13-63-306

$5.24

1-3/4 x 1-3/4 x .093 Architectural Aluminum Channel 6063-T52

0.565

Item:

13-63-307

$5.65

1.796 x 1-1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.666

Item:

30-63-135

$6.66

2 x 7/16 x .093 Architectural Aluminum Channel 6063-T52

0.294

Item:

13-63-261

$2.94

2 x 1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.413

Item:

13-63-260

$4.13

2 x 3/4 x .093 leg/.125 Architectural Aluminum Channel 6063-T52

0.44

Item:

13-63-262

$4.40

2 x 1 x .093 Architectural Aluminum Channel 6063-T52

0.426

Item:

13-63-279

$4.26

2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.563

Item:

13-63-265

$5.63

2 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.563

Item:

13-63-274

$5.63

2-1/4 x 7/8 x 1/8 Architectural Aluminum Channel 6063-T52

0.563

Item:

13-63-270

$5.63

2.325 x 2.38 x 0.125 Architectural Aluminum Channel 6063-T52

1.008

Item:

200-MF-103

$10.08

2-1/2 x 1-1/2 x 1/8 Architectural Aluminum Channel 6063-T52

0.787

Item:

52-61-3798

$7.87

3 x 1 x 1/8 Architectural Aluminum Channel 6063-T52

0.713

Item:

13-63-285

$7.13

4 x 1 x .105 leg/.080 web (w/radius) Architectural Aluminum Channel 6063-T52

0.613

Item:

13-63-273

$6.13

10 x 1-1/4 x .188 Architectural Aluminum Channel 6063-T52

2.726

Item:

30-63-140

$27.26
